Laser diode driver
The Beratron GmbH is specialized in current-sources for pulsed applications, especially in high-power diode-laser technology (HPDL). Beratron current-sources are best suited for pulse current for single diodes, bars and arrays.
Our products range enfolded devices in 19 inch rack format in different power classes. These devices can be powered with 110V - 230V AC. They are equipped with several safety-loops and can be controlled via RS232, USB and CAN-Bus. An easy-to-use controll-software for Windows and UNIX Systems is available.
On this page you will get an overview on our products in current-sources.

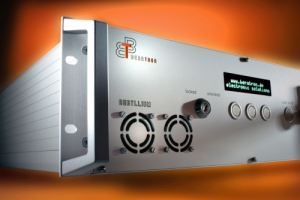

• up to 500 Amps pulse-current
• fully featured
• 19 inch enclosure
• Key-turn system
• Astatine max. 500 Watt, Beryllium max. 1500 Watt
• Astatine air-cooled, Beryllium water-cooled
• Applications: Research and Development, Production
• USB, EIA232 and CAN-Bus

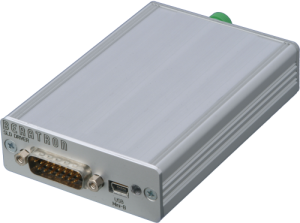

• up to 300 mA
• USB- and analogue interface
• TEC up to 1,5 A / 3,5 V
• supply 8 - 30 V DC
• for DIL 14 or Butterfly 14
• Service: mounting of the diode is done by Beratron

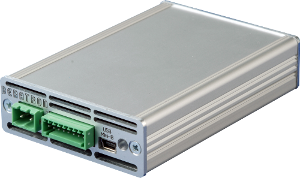

• 3.3 A, 5.8 A, 7.5 A, 10 A or 15 A
• rise-time < 1 µs
• USB- and analogue interface
• internally mounted diode with fiber-connector
• TEC up to 15 A / 24 V, equates to ca. 8 W at ΔT=10°C to environment
• suply 24 V/DC
• suitable for many fibre-coupled diodes
• Service: mounting of the diode is done by Beratron

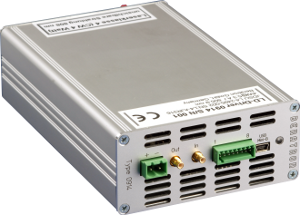

• 30 A CW
• 24 V/DC supply
• USB
• analoguee interface
• air-cooled
If our standard-devices do not fit your personal requirements, please contact us. The Beratron GmbH offers customized solutions.

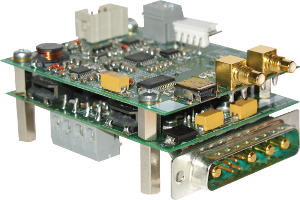

• customized drivers for you application
• OEM or with enclosure
• optional TEC
• highly accurate temerature regulation
• production possible
|
